MX3DP 3D Concrete Printer
Mobile. Autonomous. Built for the future of construction.
MX3DP 3D Concrete Printer
The MX3DP system is engineered to perform accurately and reliably in the most difficult conditions. Even in challenging terrain, the MX3DP performs without the need for heavy equipment or infrastructure.
What is the MX3DP 3D Concrete Printer?
The MX3DP system is a compact, ruggedized robotic-arm-style 3D printer on a continuous-track mobile platform, complete with a:
- Materials mixer
- Pumping system
- Wireless remote control
- 24/7/365 technical support
- Silo for Construction Material
- All hoses and feed lines for normal operation and for flushing cycles
Mobile 3D Concrete Printing at the Ready

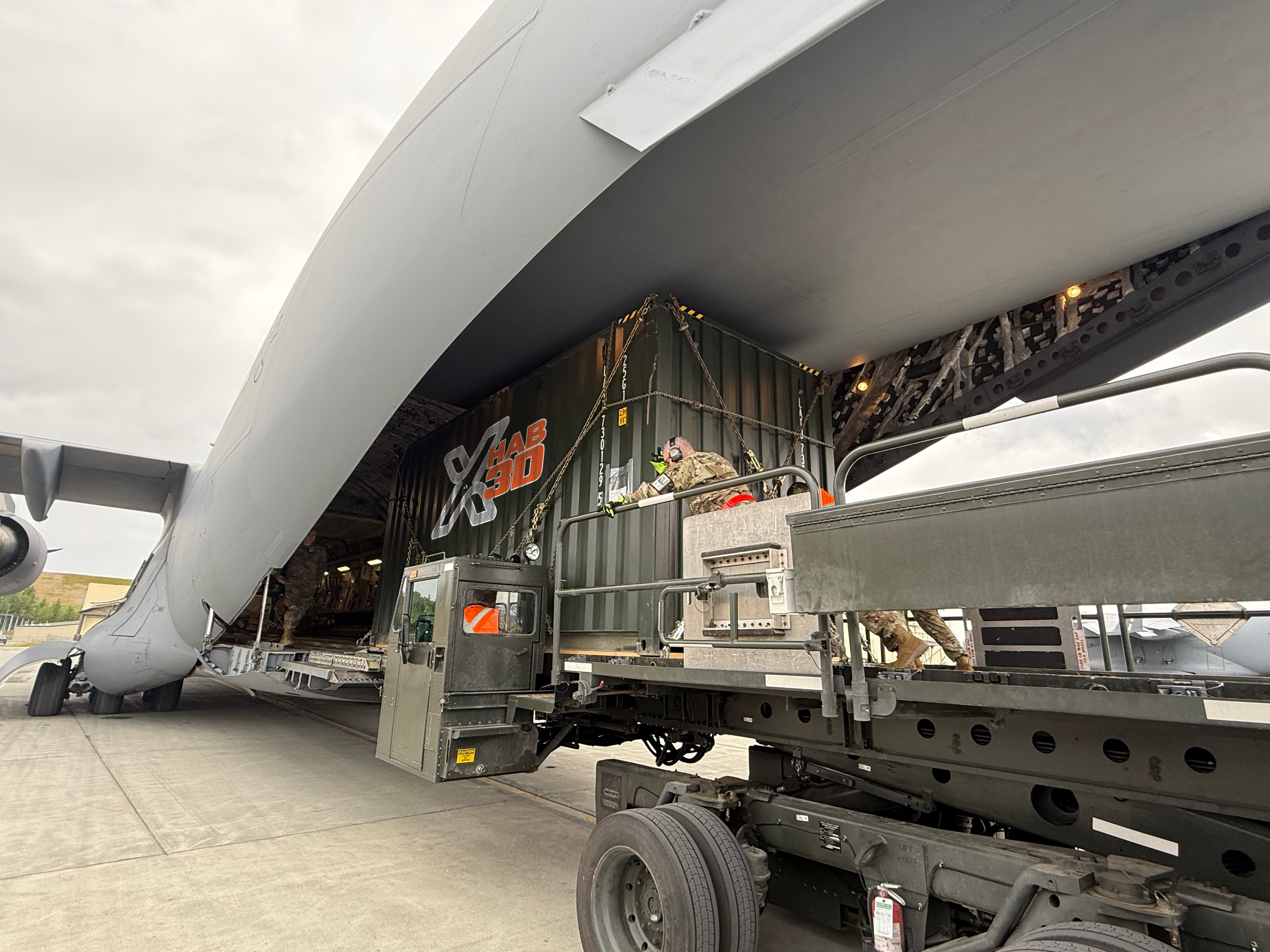

The MX3DP printer comes fully assembled and fits into a standard, 20-foot shipping container or on a flatbed trailer. It’s ready for immediate transport to the point of need virtually anywhere on the planet, whether it’s by:
- Truck
- Plane
- Helicopter
- Ship or barge
Once at the desired location, the printer can exit the container or trailer and move about the construction site under its own power.
The printer can exit the container or trailer and move about the construction site under its own power. The MX3DP is also equipped with hydraulic lift capability for added reach and positioning for every project.

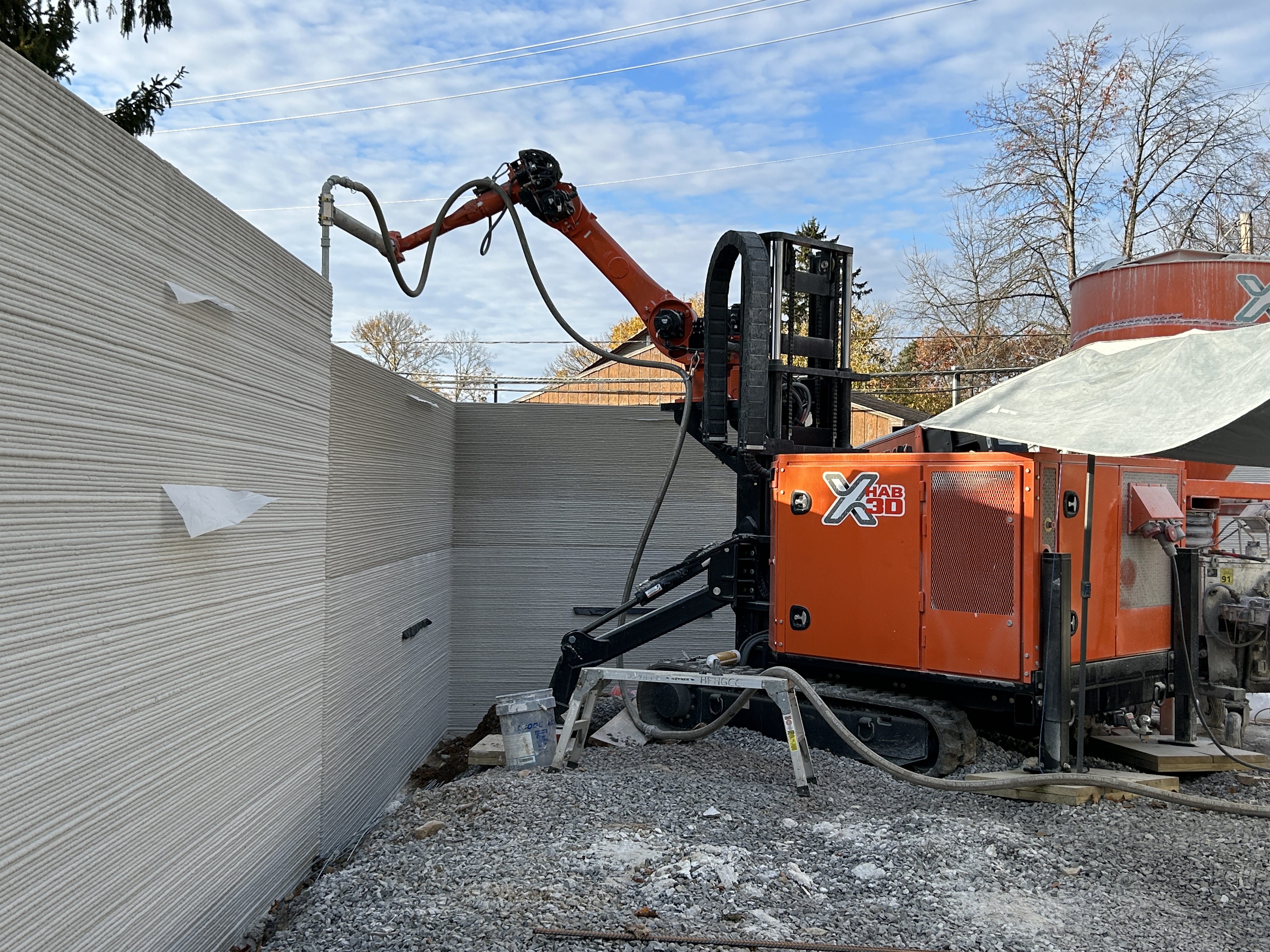

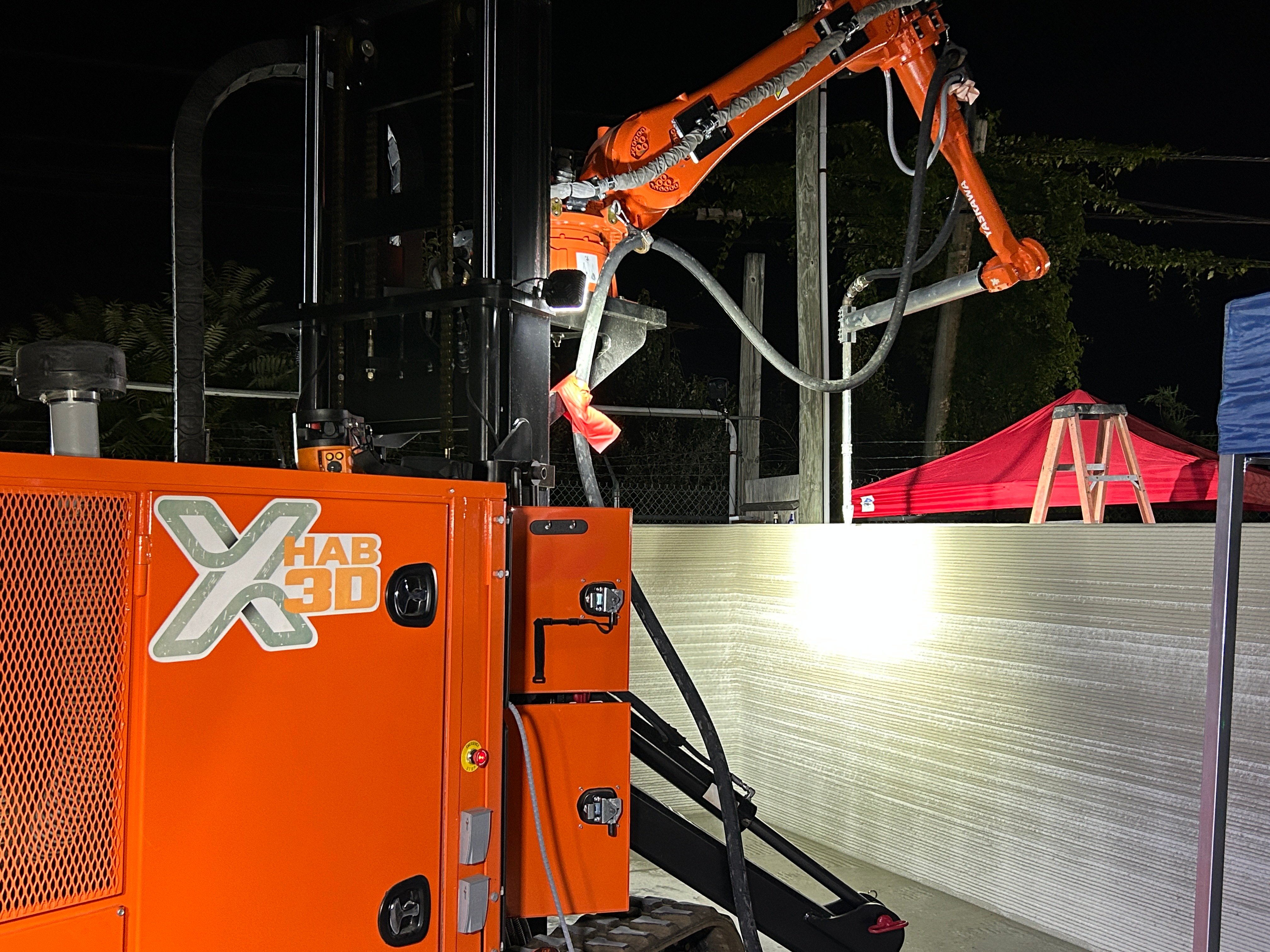

The MX3DP system is designed to print structures up to 25 feet high, using its computer-controlled, 6-axis robotic arm in combination with the custom lift mechanism mounted on the mobile platform. It can also print up to 12 feet below grade.
At a Glance:
Rugged
X-Hab 3D's system is built for maximum reliability, versatility, and endurance, ensuring that it can perform under the most demanding conditions while delivering high-quality, 3D concrete structures wherever they are needed.
Mobile
X-hab 3D's mobility enables fast, autonomous, and resilient construction anywhere, from remote military bases to disaster-stricken areas and off-grid settlements, setting it apart from traditional stationary 3D printing systems.
Versatile
X-Hab 3D's mobile robotic system is far more than a 3D concrete printer - it's a multi-functional, semi-autonomous construction platform designed for diverse applications across military, disaster relief, and commercial sectors.
Learn How X-Hab 3D Concrete Printing is
Revolutionizing Construction
Download industry sheets with specs today:
The X-Hab Difference
As a mobile 3D printer, X-Hab deploys simplicity and practicality with the MX3DP. This allows the printer to have several advantages in the space.
Robotic-Arm Configuration:
- Robotic arm with 6 axis rotation (7th axis optional)- Robot Controller with integrated software for code generation and slicing tools
- Robust control software and user interface
- Permanently mounted on mobile platform
Standard Support Services:
- Digital Design Software- Access to X-Hab 3D’s Digital Design Gallery
- Spare Parts / Repair Kit
- Training for four individuals
- Real-time virtual technical support 24/7/365
- Warranty: 2-year end-to-end warranty against manufacturing and design defects
Mobile Platform:
- Self-powered- Continuous track mobile platform
- Stabilizer arms with self-leveling capability
- Hydraulic power unit and electric generator
- Custom lift mechanism
- Wireless tablet for remote control
.jpg)
Options Available:
- Volumetric Mixer
- Smart Nozzle:
- Accelerant admixture control at print head is an option
- Flowrate control
- Start/stop
- Extended Warranty
Materials Used
Our machine is compatible with other mixes, as well as our own. The flexibility of our materials is simple but extraordinary.
Connect With Us
See X-Hab 3D’s MX3DP in action.
